The Rise of Precision Electronics and the Role of the Soldering Microscope
Over the past decade, electronic devices have become increasingly compact and complex. With the rise of surface-mount technology (SMT), components are now smaller than ever, making manual soldering and inspection more challenging. Traditional magnifying lenses or simple optical microscopes no longer provide the detail and depth needed for modern microelectronics.
The soldering microscope emerged as the ideal solution for this challenge. Equipped with high-resolution optics, powerful LED illumination, and digital imaging capabilities, it allows technicians to see every solder joint, wire, and microcomponent with crystal clarity. This precision is crucial when working on tiny resistors, capacitors, and integrated circuits, where even a single microscopic solder bridge can cause a malfunction.
Today, soldering microscopes are used across industries including electronics repair, circuit design, manufacturing, and even medical device assembly. Their ability to enhance visual accuracy not only improves craftsmanship but also reduces errors and rework—saving both time and resources.
Features That Define a Professional Soldering Microscope
A soldering microscope is not just any magnifying tool—it’s a blend of optical excellence and ergonomic design tailored specifically for electronics work. The most noticeable feature is the binocular or trinocular head, which provides a comfortable, stereoscopic view of the workspace. This 3D visual perspective helps users perceive depth accurately, which is essential for precision soldering and rework.
High-quality soldering microscopes offer adjustable zoom capabilities, often ranging from 5x to 90x magnification, depending on the model. This range allows users to inspect both fine solder joints and broader circuit layouts with equal ease. Modern digital soldering microscopes go a step further by integrating HD or 4K cameras, allowing images to be displayed on monitors or captured for documentation and training purposes.
Illumination plays a key role as well. LED ring lights or fiber-optic lighting systems provide bright, shadow-free illumination, ensuring that even the smallest solder pad is clearly visible. Some advanced models include adjustable color temperature to adapt to different working environments and materials.
Equally important is the microscope’s working distance—the space between the objective lens and the workpiece. A good soldering microscope provides ample room for tools like soldering irons, tweezers, and hot air guns, enabling users to perform detailed work comfortably without obstruction.
Applications in Modern Electronics and Engineering
The soldering microscope has become an indispensable tool across a wide range of applications. In electronic repair shops, it is used for smartphone and tablet micro-soldering, where technicians must handle components smaller than a grain of rice. In manufacturing facilities, engineers rely on soldering microscopes to inspect printed circuit boards for defects, ensuring each unit meets strict quality standards.
For prototyping and design work, these microscopes enable developers to fine-tune connections and verify solder quality during assembly. In laboratories and educational institutions, they are used to train students and professionals in the art of microelectronics, helping them develop steady hands and sharp visual awareness.
Even outside the traditional electronics field, soldering microscopes find use in jewelry repair, watchmaking, and precision engineering—anywhere that accuracy under magnification is required. Their versatility and clarity make them one of the most valuable tools in any technical workspace.
The Impact of Digital Microscopy on Soldering Efficiency

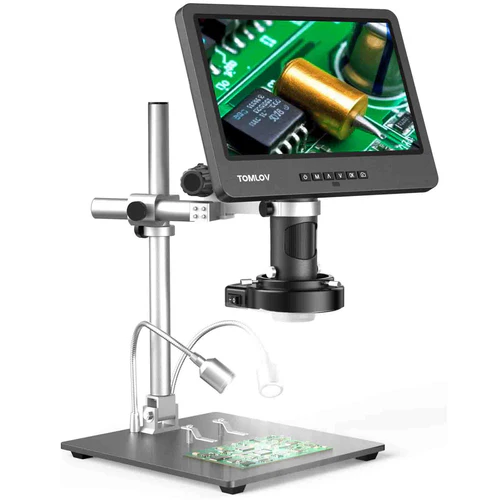

The shift from optical to digital soldering microscope has further enhanced productivity and precision. With built-in cameras and high-resolution displays, digital microscopes eliminate the need for eyepieces, reducing eye strain during extended use. This feature also allows for real-time viewing on larger screens, making it easier for multiple technicians or trainees to observe intricate procedures simultaneously.
often come equipped with software that allows users to capture images, record videos, and measure distances directly on-screen. This functionality is especially useful for documentation, quality assurance, and sharing results across teams. As technology continues to evolve, some advanced systems now integrate with computer software that performs automated defect detection, enhancing accuracy in industrial inspection processes.
Another key advantage is the ability to connect the microscope to HDMI or USB outputs, allowing for seamless integration with computers or monitors. This digital connectivity transforms the traditional soldering process into a modern, tech-driven experience where precision meets efficiency.
Enhancing Work Quality and Reducing Errors
When working with micro-sized components, even a fraction of a millimeter can make a difference. The soldering microscope allows technicians to identify potential issues such as cold joints, solder bridges, or damaged traces before they cause system failures. By offering real-time magnified feedback, it helps ensure each connection is made accurately and consistently.
Moreover, the ergonomic design of modern microscopes reduces fatigue during long hours of soldering. Adjustable stands, tiltable heads, and wide working distances contribute to comfortable, stable operation. This improvement in ergonomics translates directly into better work quality, as technicians can focus on precision rather than struggling with limited visibility or awkward positioning.
In high-volume production environments, the use of soldering microscopes minimizes the likelihood of defective products, leading to higher yields and improved reliability. For small businesses and individual technicians, the investment in a microscope quickly pays off through reduced rework, fewer returns, and more professional results.
The Future of Soldering Microscopy
As electronic devices continue to shrink in size, the demand for more advanced soldering microscopes continues to grow. Future models are expected to integrate artificial intelligence for automated inspection and real-time analysis, allowing microscopes to detect faults and anomalies automatically. Enhanced 3D visualization and augmented reality overlays are also being developed to provide even greater control during soldering and rework.
Wireless connectivity and cloud-based data management will further streamline communication and record-keeping across production environments. These technological advancements signal a future where soldering microscopy will not only enhance vision but also act as an intelligent assistant in precision manufacturing.
Conclusion
The soldering microscope has revolutionized the way electronic components are inspected, repaired, and assembled. Its combination of magnification, clarity, and digital integration makes it an essential instrument for anyone working with fine circuitry or micro-soldering tasks. By offering a detailed view of each connection and enabling greater accuracy, it empowers technicians to work with confidence and precision.
Whether in a professional electronics lab, a repair workshop, or a home workstation, the soldering microscope has become the ultimate companion for those who demand perfection in their craft. As technology advances, its role will only become more significant, bridging the gap between human skill and digital precision—one microscopic connection at a time.
